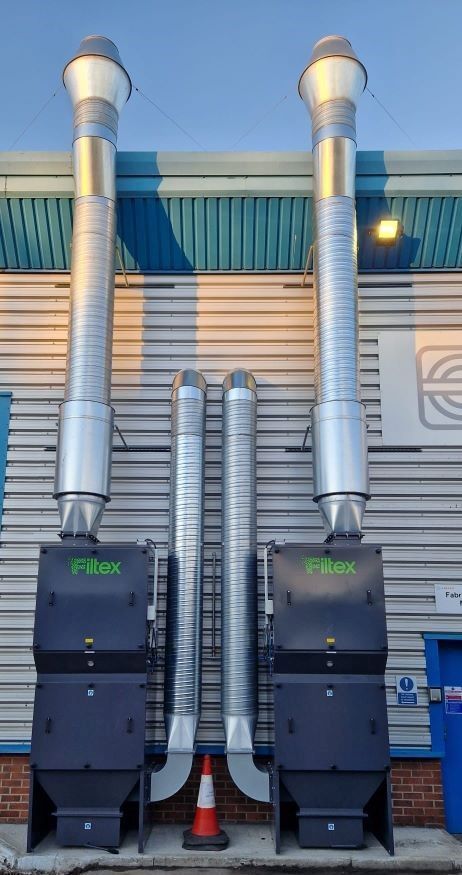

FXC Series Reverse Pulse Jet Filter Units
Our FXC series of reverse pulse jet dust collectors are designed for use on more continuous applications where the extraction system can not be shut down during the process for filter cleaning. The electronic pulse control system introduces a "pulse" of compressed air to clean the filters at predetermined intervals allowing the dust extraction process to continue uninterrupted.

The specific design of the inlet reduces turbulence within the filter unit which minimises cartridge & media abrasion.

The compact arrangement allows for installation into smaller foot prints but allows the flexibility to combine modules together if necessary when a larger filter area  is required to suit a specific application.

Our filter technology allows a higher dust holding capacity, delivering improved cleaning while reducing the overall cost of operation through less frequent pulse cleaning, lower compressed air consumption and less frequent filter changes.

Our filter cartridges can be manufactured combining advanced substrates with a range of special medias and coatings to create cartridges suitable for any application.

Standard Features:

Filter Media Range from 86m² to 3076m²
Integral Fan Range from 7.5Kw to 30Kw
• Inlet Static Pressures from 100 to 5000 Pascals’
• Fabricated from 2mm Mild Steel CR Sheet
• Nano Fibre Filter technology
• Quick Release Cam Lock Waste Collection Bin
• 5 Coat Gloss Enamel Paint Finish
• Pulse Control Package.
• Waste Bin Balance

Optional Features:

• Inlet & Outlet Duct Transitions
Inlet Static Pressures from 1,750 to 5,000 Pascals
• Dirty Air Inlet Spark Arrestor
• Fabricated from 304L – 316L Stainless Steel.
• Antistatic/Oleophobic/High Temperature Filter Media
• Secondary HEPA Filter Section
• Rotary Valve Waste Arrangements for connection to IBC.
• Large Capacity Waste Collection Bin
• ATEX - Internal / External Zone 21 Compliant
• ATEX II 3D Ex tc IIIC T125°  Drive Motors
• ATEX - Rear Mounted Explosion Relief Panel
• ATEX - Flammable Airstreams / Flameproof Units
